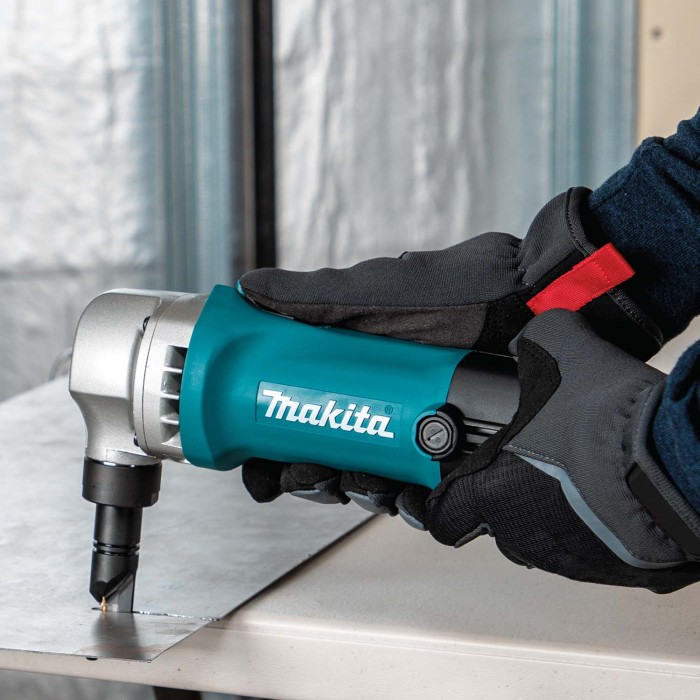

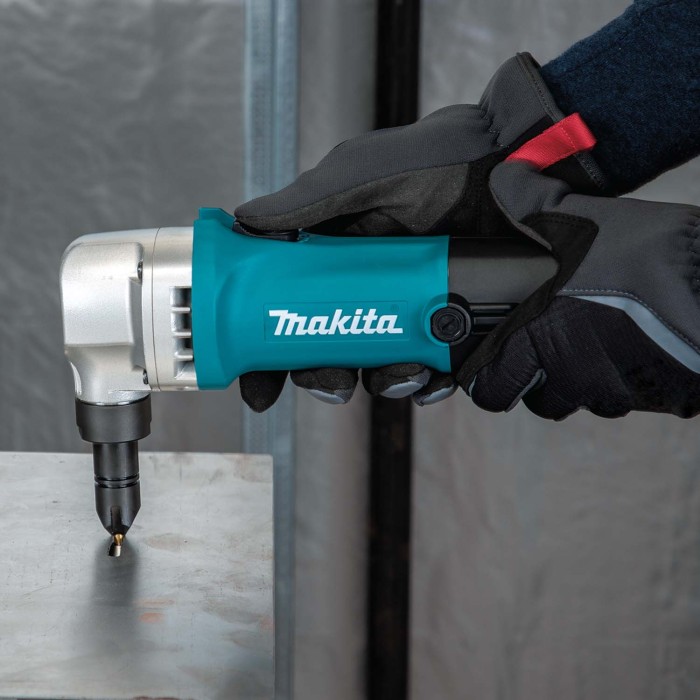

1. Precise, burr-free curved and straight cuts from slim, yet powerful performer

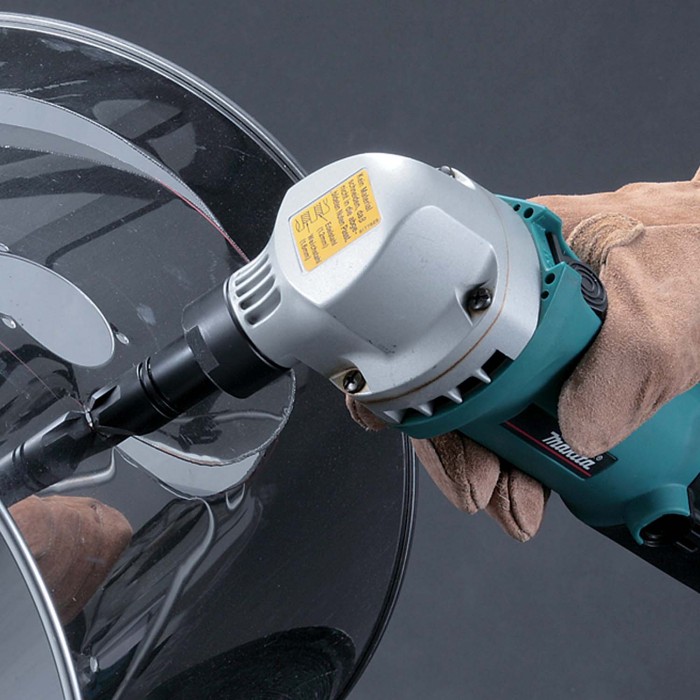

2. Cuts at and corrugated sheet metal with the same die
3. Die rotates 360degrees, large 1/4″ stroke
4. Built-in thickness gauge for convenience
capacity
: Steel up to 400 N/mm² : 1.6mm
: Steel up to 600 N/mm² : 1.2mm
: Steel up to 800 N/mm² : 0.8mm
: Aluminum up to 200 N/mm² : 2.5mm
Min. cutting radius
: Outside edge : 50 mm (2")
: Inside edge : 45 mm (1-3/4")
Strokes per minute (spm)
: 2,200
Net Weight*
: 1.6kg (3.5 lbs)
